Post／Rod Systems

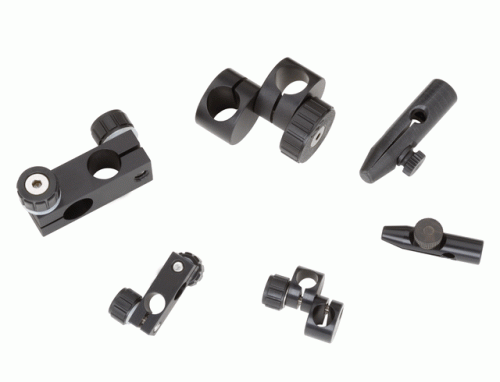

7 Clamps 관리자 2007.08.08

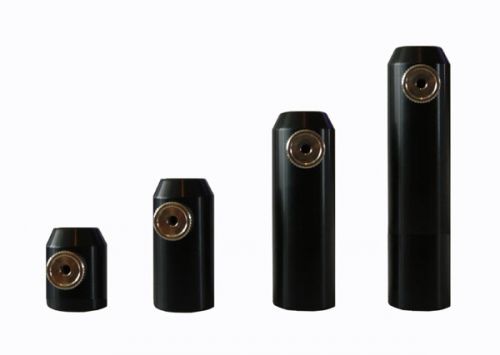

6 Post ＆ Postholders
제목 없음PostPost HolderModelSize(L)ModelSize(L)DSI-P2525㎜DSI-PH2525㎜DSI-P5050㎜DSI-PH5050㎜DSI-P7575㎜DSI-PH7575㎜DSI-P100100㎜DSI-PH100100㎜DSI-P150150㎜DSI-PH150150㎜DSI-P200200㎜DSI-P250250㎜DSI-P300300㎜ 관리자 2007.08.08

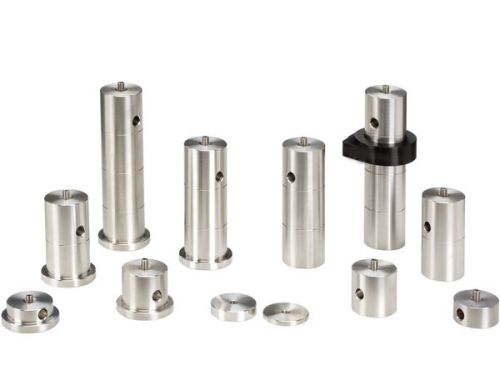

5 Pedestal Post & Fork Clamp
- Highly stable — long-term alignment maintained - Clamping fork secures a pedestal post anywhere on an optical table - Create nearly any height with extension posts and spacers - Index marks for quick height reference - New 45-degree mirror mou▣ Pedestal Post System▣  Pedestal Post System Model Description Height A (mm) Thread       DSI- PS-F Clamping Fork  M6       DSI-PS-12 Pedestal Post12.5M4       DSI-PS-25 Pedestal Post25.0M4       DSI-PS-50 Pedestal Post50.0M4       DSI-PS-75 Pedestal Post75.0M4       DSI-PS-100 Pedestal Post100.0M4       DSI-PS-12E Extension Post12.5M4       DSI-PS-25E Extension Post25.0M4       DSI-PS-50E Extension Post50.0M4       DSI-PS-75E Extension Post75.0.M4       DSI-PS-100E Extension Post100.0M4       DSI-PS-3 Spacer3.13M4 Thru       DSI-PS-6 Spacer 6.25M4 Thru       DSI-PS-B-12 Pedestal Base12.5 M6 CLR       DSI-PS-B-25 Pedestal Base25.0 M6 CLR       DSI-SS-1-B Thread Adaptor6.25 M6 to M4       DSI-PS-SC Sliding Clamp M4 관리자 2007.08.03

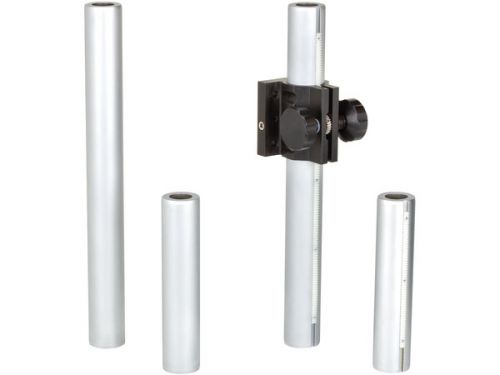

4 Rod System
- Locks down rods anywhere on Newport tables and breadboards - Rigid support for rods and components - Easily adjustable with component in place 관리자 2007.08.03

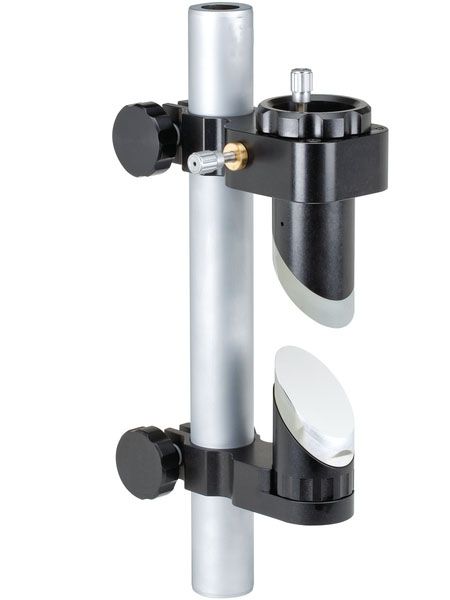

3 Beam Steerers 관리자 2007.08.04

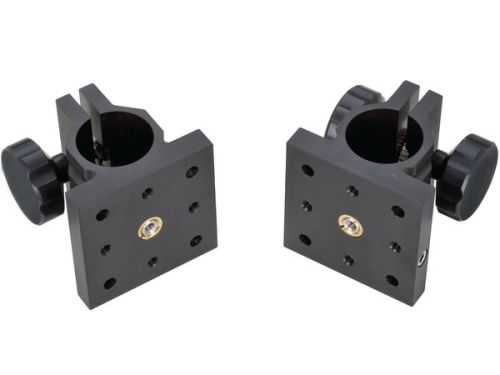

2 Rod Clamps
- Large mounting surface - Smooth, “chatter-free” height adjustment - Quick disconnect mechanism - Stable, wobble-free lock down - Components attach in a variety of angular orientations 관리자 2007.08.08

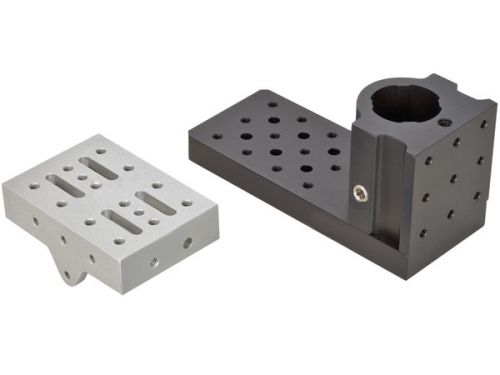

1 Rod Platforms
- Can be rotated over 360° in continuous 90° steps - Five mounting surfaces - Stackable for compound-angle positioning - Three mounting surfaces - Smooth, wobble-free height adjustment: rigid lock-down - Two-piece design for increased versatility 관리자 2007.08.08
