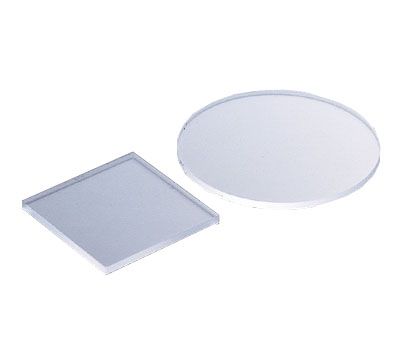

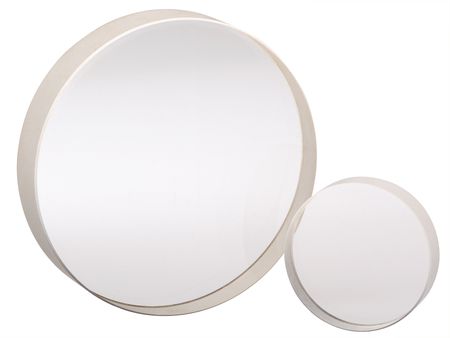

BK-7 Windows

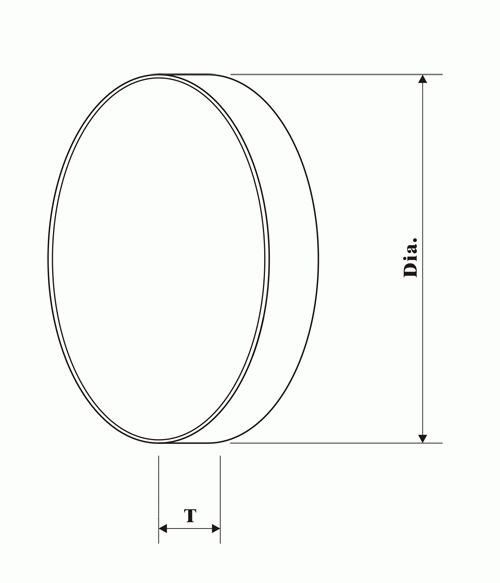

Size

Thickness

Surface Flatness

Model

Size

Thickness

Surface Flatness

Model

Φ10

2

λ/10

DSI-W10C2-BK10

Φ10

2

λ/4

DSI-W10C2-BK4

3

DSI-W10C3-BK10

3

DSI-W10C3-BK4

4

DSI-W10C4-BK10

4

DSI-W10C4-BK4

Φ15

2

λ/10

DSI-W15C2-BK10

Φ15

2

λ/4

DSI-W15C2-BK4

3

DSI-W15C3-BK10

3

DSI-W15C3-BK4

4

DSI-W15C4-BK10

4

DSI-W15C4-BK4

Φ20

3

λ/10

DSI-W20C3-BK10

Φ20

3

λ/4

DSI-W20C3-BK4

4

DSI-W20C4-BK10

4

DSI-W20C4-BK4

5

DSI-W20C5-BK10

5

DSI-W20C5-BK4

6

DSI-W20C6-BK10

6

DSI-W20C6-BK4

Φ25

3

λ/10

DSI-W25C3-BK10

Φ25

3

λ/4

DSI-W25C3-BK4

4

DSI-W25C4-BK10

4

DSI-W25C4-BK4

5

DSI-W25C5-BK10

5

DSI-W25C5-BK4

6

DSI-W25C6-BK10

6

DSI-W25C6-BK4

Φ30

3

λ/10

DSI-W30C3-BK10

Φ30

3

λ/4

DSI-W30C3-BK4

4

DSI-W30C4-BK10

4

DSI-W30C4-BK4

5

DSI-W30C5-BK10

5

DSI-W30C5-BK4

6

DSI-W30C6-BK10

6

DSI-W30C6-BK4

Φ40

3

λ/10

DSI-W40C3-BK10

Φ40

3

λ/4

DSI-W40C3-BK4

4

DSI-W40C4-BK10

4

DSI-W40C4-BK4

5

DSI-W40C5-BK10

5

DSI-W40C5-BK4

6

DSI-W40C6-BK10

6

DSI-W40C6-BK4

Φ50

4

λ/10

DSI-W50C4-BK10

Φ50

4

λ/4

DSI-W50C4-BK4

5

DSI-W50C5-BK10

5

DSI-W50C5-BK4

6

DSI-W50C6-BK10

6

DSI-W50C6-BK4

8

DSI-W50C8-BK10

8

DSI-W50C8-BK4

Φ60

5

λ/10

DSI-W60C5-BK10

Φ60

5

λ/4

DSI-W60C5-BK4

6

DSI-W60C6-BK10

6

DSI-W60C6-BK4

8

DSI-W60C8-BK10

8

DSI-W60C8-BK4

10

DSI-W60C10-BK10

10

DSI-W60C10-BK4

Φ70

6

λ/10

DSI-W70C6-BK10

Φ70

6

λ/4

DSI-W70C6-BK4

8

DSI-W70C8-BK10

8

DSI-W70C8-BK4

10

DSI-W70C10-BK10

10

DSI-W70C10-BK4

12

DSI-W70C12-BK10

12

DSI-W70C12-BK4

Φ80

8

λ/4

DSI-W80C8-BK4

Φ80

8

λ/2

DSI-W80C8-BK2

10

DSI-W80C10-BK4

10

DSI-W80C10-BK2

12

DSI-W80C12-BK4

12

DSI-W80C12-BK2

15

DSI-W80C15-BK4

15

DSI-W80C15-BK2

Φ90

10

λ/4

DSI-W90C10-BK4

Φ90

10

λ/2

DSI-W90C10-BK2

12

DSI-W90C12-BK4

12

DSI-W90C12-BK2

15

DSI-W90C15-BK4

15

DSI-W90C15-BK2

Φ100

10

λ/4

DSI-W100C10-BK4

Φ100

10

λ/2

DSI-W100C10-BK2

15

DSI-W100C15-BK4

15

DSI-W100C15-BK2

20

DSI-W100C20-BK4

20

DSI-W100C20-BK2

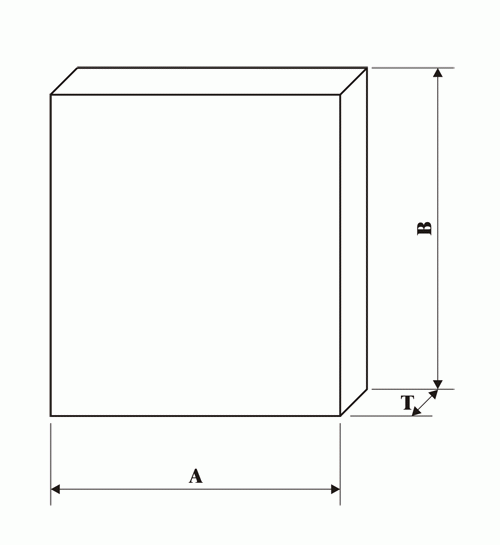

Size

Thickness

Surface Flatness

Model

Size

Thickness

Surface Flatness

Model

10×10

2

λ/10

DSI-W10S2-BK10

10×10

2

λ/4

DSI-W10S2-BK4

3

DSI-W10S3-BK10

3

DSI-W10S3-BK4

4

DSI-W104-BK10

4

DSI-W10S4-BK4

15×15

2

λ/10

DSI-W15S2-BK10

15×15

2

λ/4

DSI-W15S2-BK4

3

DSI-W15S3-BK10

3

DSI-W15S3-BK4

4

DSI-W15S4-BK10

4

DSI-W15S4-BK4

20×20

3

λ/10

DSI-W20S3-BK10

20×20

3

λ/4

DSI-W20S3-BK4

4

DSI-W20S4-BK10

4

DSI-W20S4-BK4

5

DSI-W20S5-BK10

5

DSI-W20S5-BK4

6

DSI-W20S6-BK10

6

DSI-W20S6-BK4

25×25

3

λ/10

DSI-W25S3-BK10

25×25

3

λ/4

DSI-W25S3-BK4

4

DSI-W25S4-BK10

4

DSI-W25S4-BK4

5

DSI-W25S5-BK10

5

DSI-W25S5-BK4

6

DSI-W25S6-BK10

6

DSI-W25S6-BK4

30×30

3

λ/10

DSI-W30S3-BK10

30×30

3

λ/4

DSI-W30S3-BK4

4

DSI-W30S4-BK10

4

DSI-W30S4-BK4

5

DSI-W30S5-BK10

5

DSI-W30S5-BK4

6

DSI-W30S6-BK10

6

DSI-W30S6-BK4

40×40

3

λ/10

DSI-W40S3-BK10

40×40

3

λ/4

DSI-W40S3-BK4

4

DSI-W40S4-BK10

4

DSI-W40S4-BK4

5

DSI-W40S5-BK10

5

DSI-W40S5-BK4

6

DSI-W40S6-BK10

6

DSI-W40S6-BK4

50×50

4

λ/10

DSI-W50S4-BK10

50×50

4

λ/4

DSI-W50S4-BK4

5

DSI-W50S5-BK10

5

DSI-W50S5-BK4

6

DSI-W50S6-BK10

6

DSI-W50S6-BK4

8

DSI-W50S8-BK10

8

DSI-W50S8-BK4

60×60

5

λ/10

DSI-W60S5-BK10

60×60

5

λ/4

DSI-W60S5-BK4

6

DSI-W60S6-BK10

6

DSI-W60S6-BK4

8

DSI-W60S8-BK10

8

DSI-W60S8-BK4

10

DSI-W60S10-BK10

10

DSI-W60S10-BK4

70×70

6

λ/10

DSI-W70S6-BK10

70×70

6

λ/4

DSI-W70S6-BK4

8

DSI-W70S8-BK10

8

DSI-W70S8-BK4

10

DSI-W70S10-BK10

10

DSI-W70S10-BK4

12

DSI-W70S12-BK10

12

DSI-W70S12-BK4

80×80

8

λ/4

DSI-W80S8-BK4

80×80

8

λ/2

DSI-W80S8-BK2

10

DSI-W80S10-BK4

10

DSI-W80S10-BK2

12

DSI-W80S12-BK4

12

DSI-W80S12-BK2

15

DSI-W80S15-BK4

15

DSI-W80S15-BK2

90×90

10

λ/4

DSI-W90S10-BK4

90×90

10

λ/2

DSI-W90S10-BK2

12

DSI-W90S12-BK4

12

DSI-W90S12-BK2

15

DSI-W90S15-BK4

15

DSI-W90S15-BK2

100×100

10

λ/4

DSI-W100S10-BK4

100×100

10

λ/2

DSI-W100S10-BK2

15

DSI-W100S15-BK4

15

DSI-W100S15-BK2

20

DSI-W100S20-BK4

20

DSI-W100S20-BK2
